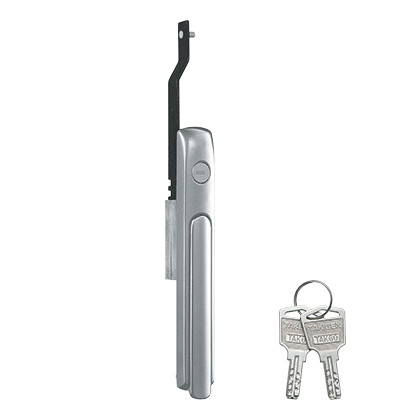

The handles are attached outside of the packing so no calking etc is needed for the handle fixed parts when making theses watertight.
The handles are attached outside of the sealing area so the inside spaces can be used maximum.
Their body is slim and also a large stroke of 32mm can be obtained.
It is not necessary to change the rod length no mater how the case needs to be changed in size.
The rod catch and the recommended hinge B-71-3 are interchangeable when fixing. Also the upper and lower handle panel drilling holes are symmetrical so it is easy to design the case (these can be used with various doors).
The lock comes standard with the TAK60, a new-style reversible key with an easy-to-use dustproof shutter. (A-462-1-1-TAK60)
Right-hand use or Left-hand use, with lock or without lock.

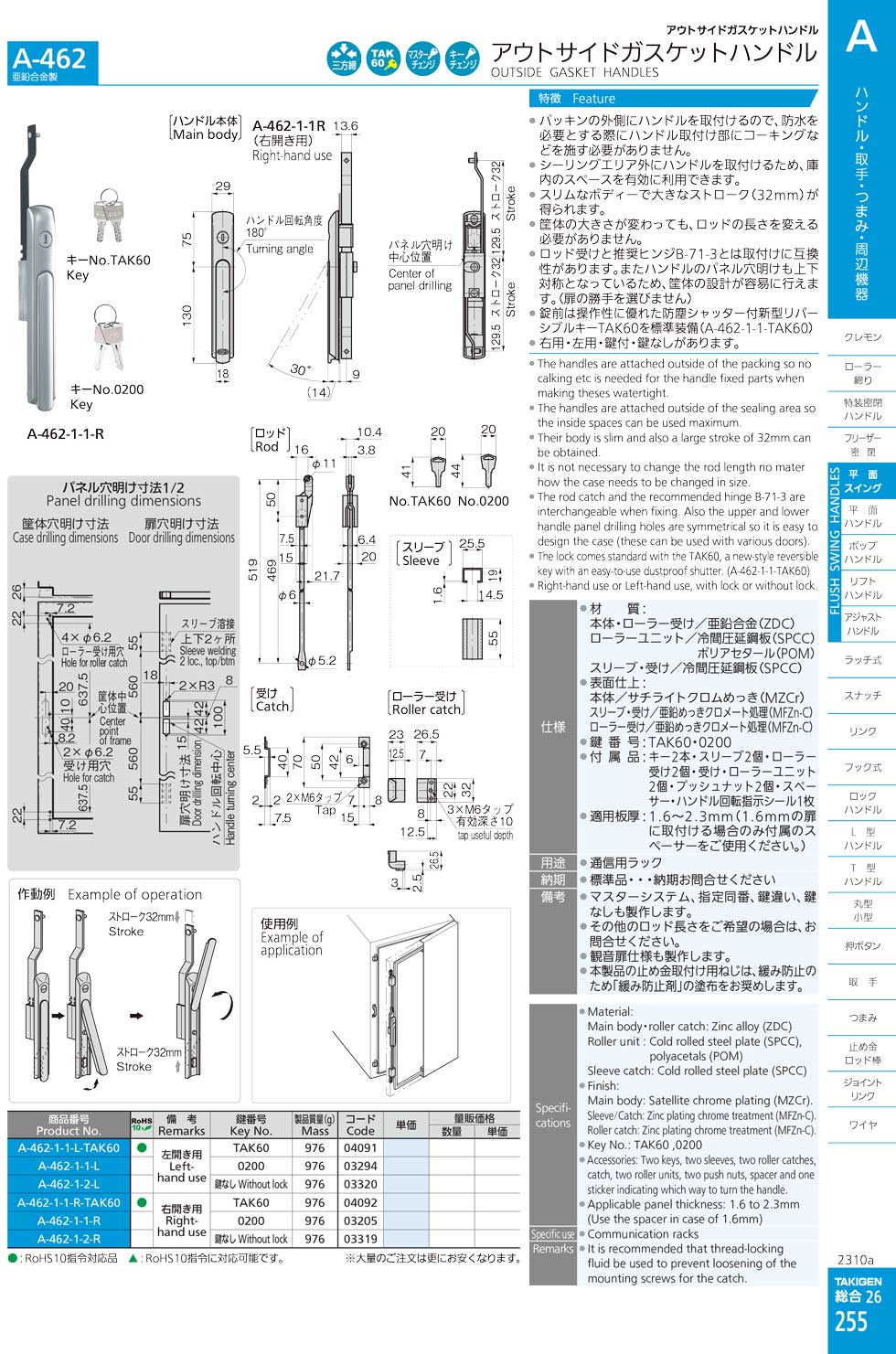

Specifications
Material:
Main body・roller catch: Zinc alloy (ZDC)
Roller unit : Cold rolled steel plate (SPCC), polyacetals (POM)
Sleeve catch: Cold rolled steel plate (SPCC)
Finish:
Main body: Satellite chrome plating (MZCr).
Sleeve/Catch: Zinc plating chrome treatment (MFZn-C).
Roller catch: Zinc plating chrome treatment (MFZn-C).
Key No.: TAK60 ,0200
Accessories: Two keys, two sleeves, two roller catches, catch, two roller units, two push nuts, spacer and one sticker indicating which way to turn the handle.
Applicable panel thickness: 1.6 to 2.3mm
(Use the spacer in case of 1.6mm)
Specific Use
Communication racks
Remarks
It is recommended that thread-locking fluid be used to prevent loosening of the mounting screws for the catch.
