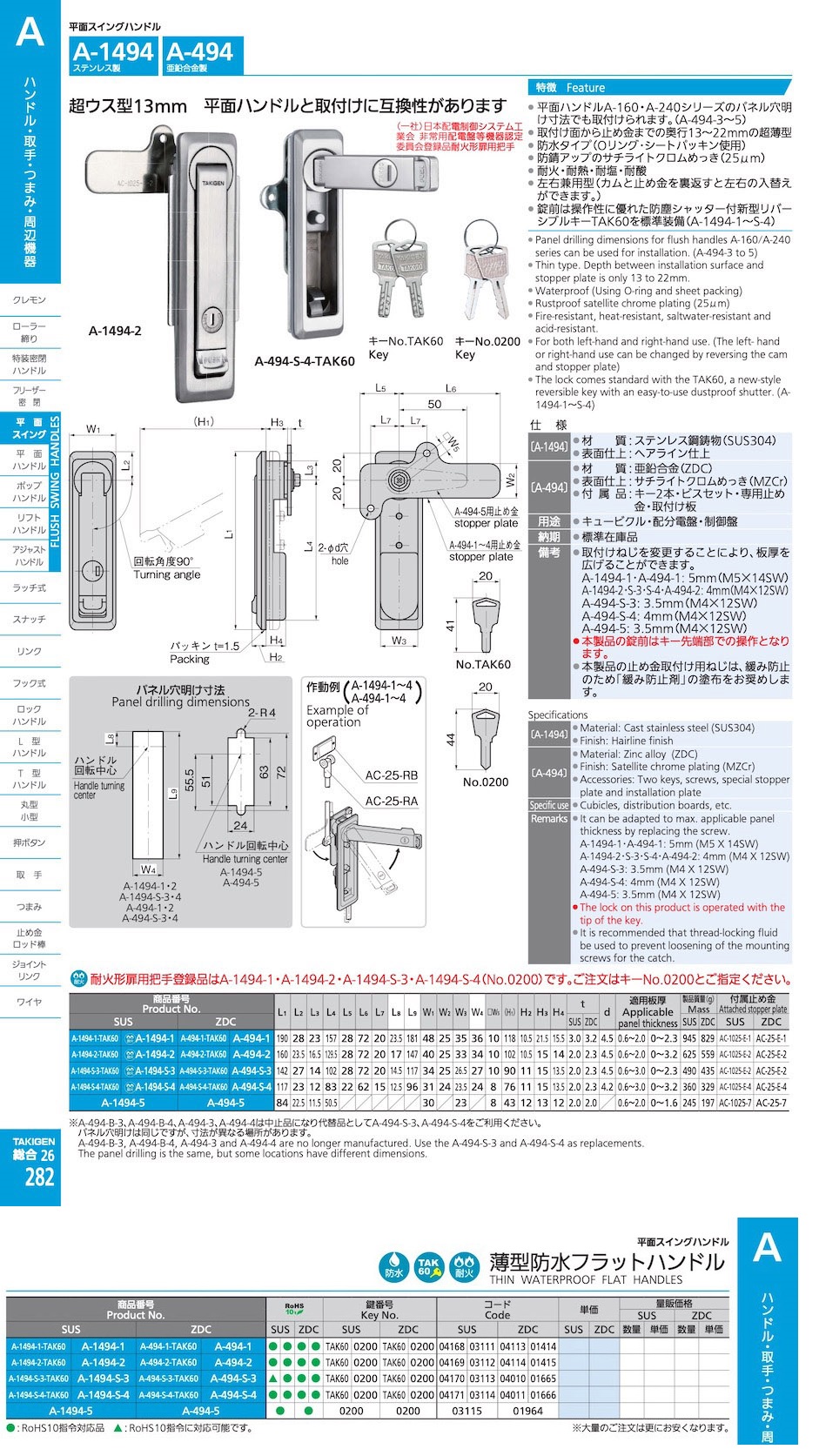

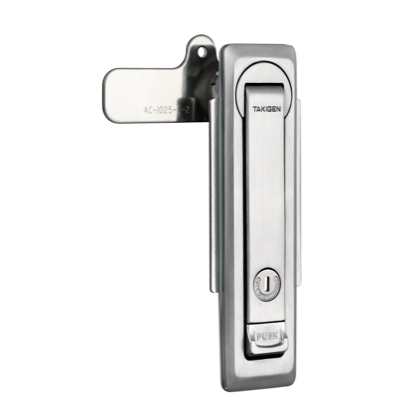

Panel drilling dimensions for flush handles A-160/A-240 series can be used for installation. (A-494-3 to 5)
Thin type. Depth between installation surface and stopper plate is only 13 to 22mm.
Waterproof (Using O-ring and sheet packing)
Rustproof satellite chrome plating (25μm)
Fire-resistant, heat-resistant, saltwater-resistant and acid-resistant.
For both left-hand and right-hand use. (The left- hand or right-hand use can be changed by reversing the cam and stopper plate)
The lock comes standard with the TAK60, a new-style reversible key with an easy-to-use dustproof shutter. (A-1494-1～S-4)
Specifications
A-494
Material: Zinc alloy (ZDC)
Finish: Satellite chrome plating (MZCr)
Accessories: Two keys, screws, special stopper plate and installation plate
A-1494
Material: Cast stainless steel (SUS304)
Finish: Hairline finish
Specific Use
Cubicles, distribution boards, etc.
Remarks
It can be adapted to max. applicable panel thickness by replacing the screw.
A-1494-1・A-494-1: 5mm (M5 X 14SW)
A-1494-2・S-3・S-4・A-494-2: 4mm (M4 X 12SW)
A-494-S-3: 3.5mm (M4 X 12SW)
A-494-S-4: 4mm (M4 X 12SW)
A-494-5: 3.5mm (M4 X 12SW)
The lock on this product is operated with the tip of the key.
It is recommended that thread-locking fluid be used to prevent loosening of the mounting screws for the catch.
