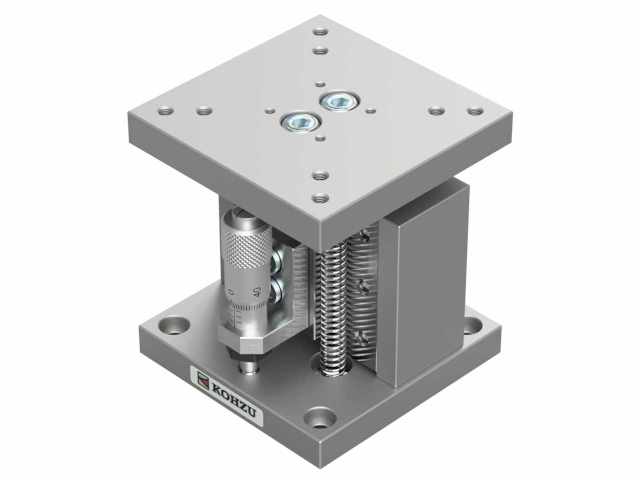

Bệ Tinh Chỉnh Chính Xác Kohzu - Trục Z

Đặc điểm nổi bật

Liên hệ

Thông số kỹ thuật

 Specifications & Description

Model Number 1. Kohzu's significant alpha-numeric model numbers offer quick product insight.
Mirror Model Number 2. Mirror symmetry of standard stage
Table Size 3. Table size refers to the stage's valid mounting table size.
Guide MechanismCross-Roller Guide4. Type of guide mechanism used on this stage.
Motion Range±3mm5. Stage travel range in the positive and negative directions from it's centered or neutral position.。
Vertically≦4μm/6mm6. Vertically is measured relative to mounting surface
Minimum ReadoutCoarse 5μm/Scale, Fine 0.25μm/Scale7. Minimum readout is the smallest measurable actuator motion increment.
Load Capacity (Horizontal)29.4N(3kgf)8. Maximum load capacity is for a horizontally orientated stage with load centered on top-plate.
MaterialAluminum Alloy9. Material specification is for stage's main body components only.
FinishClear-Matt Anodizing10. Surface finish type and color.
Weight0.9kg11. Stage weight includes all components depicted in product photograph.
ActuatorFine Pitch Positioner FPP03-13 (13mm)12. Actuator model number and travel range.
Price(JPY) 13. Catalog price in Japanese currency.
Overhaul Price * 14. Overhaul price in Japanese currency
Clean Room Lubricant Change Price 15. Clean Room Lubricant change Price in Japanese currency.
Vacuum Lubricant Change Price 16. Vacuum Lubricant change Price in Japanese currency.
